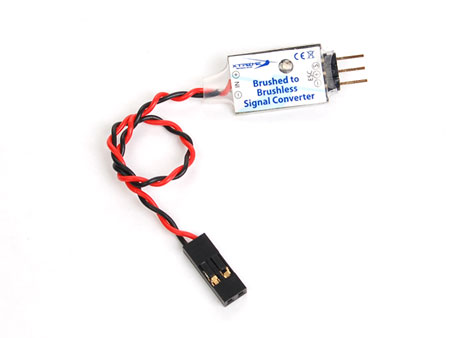

Brushed to Brushless Signal Converter
Brushed to Brushless Signal Converter
  • Model: EA-048
  • Weight: 11 grams
  • Brand: Xtreme Production

Price:   US$14.90


Brushless system has a higher efficiency and more powerful setup compare to the conventional brushed power system. However, most Ready-to-Fly/ Ready-to-Run kits are supplied with all-in-one system, which may have receiver, brushed motor speed controller (ESC), gyro and signal-mixing board integrated in one piece device, such as the 4-in-1 board on LAMA helicopter and some RC racing toy boats. The all-in-one board becomes a challenge for those modelers who wish to upgrade their existing brushed motor system.

This brushless converter is the product to solve this problem.

** This converter is NOT suitable to use on Blade MCPX.
** This product is ONLY suitable with single-direction brushed system, which could NOT be applied on reversible brushed system


Weight2 gram
Dimension23x 13x 4.5mm
All-up Weight27g
Brushed PWM InputLess than 10V, PWM frequency auto detection
Power Supply5V, +/-10%, from BEC of the brushless ESC
Signal Output5V Pulse, pulse width range 1-2mS, 1.5mS mid-point

Current Reviews: 0

This product was added to our catalog on Friday 05 October, 2012.
